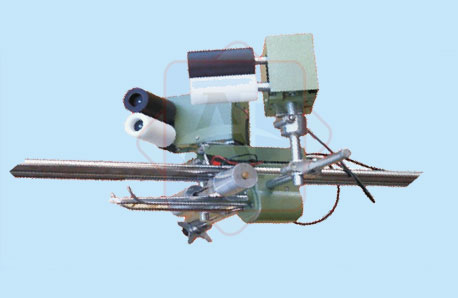

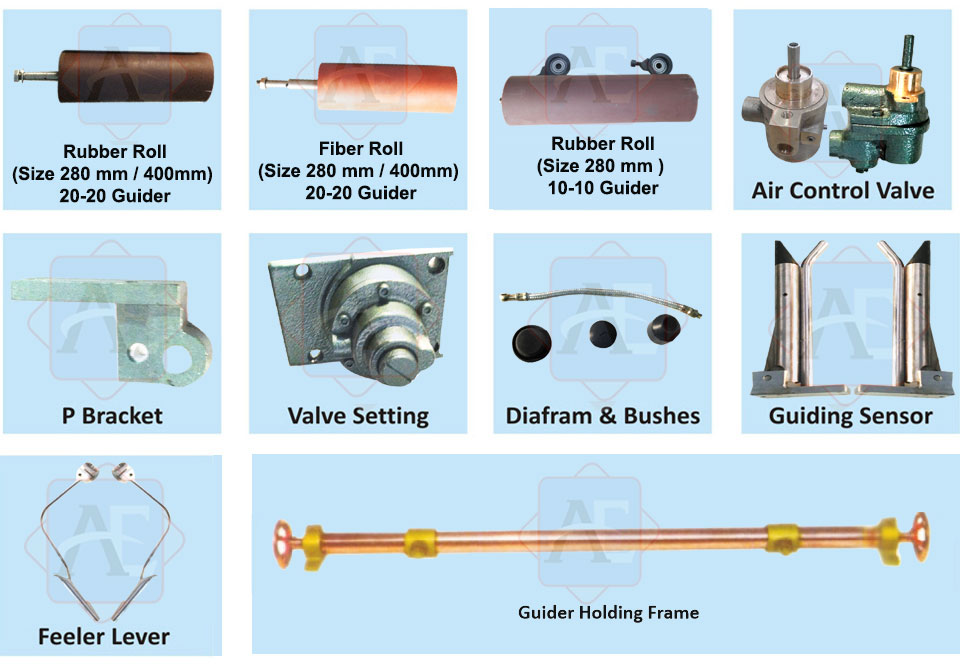

AEW Cloth Guiders were the most economical solution to guide your fabric during various Fabric Converting Process. Web Edges Sensing can be Mechnically or sensor, these scanned feedback return to diaphram or gearbox and it will pressure or release the nip roll. The Web edges will be control by offset roller and nip pressure roller. These guider were used in Pair (LH and RH) to center guide the web, it will be hold on Guidign frame which is adjustable to different width webs.
| Power Supply: | 0.5 HP / 1 HP with 415 V, 50 Hz |
|---|---|
| Edge Sensing: | Hydro-Pneumatic |
| Suitable for: | materials like film, PP, Non Woven, Fabric and Paper. |
| Unsed in Machines: | Coating/Limionation, Printing, Slitting, Inspection, etc. |
| Maintanance: | Low |
| Performance: | Suitable for Heigh speed application |

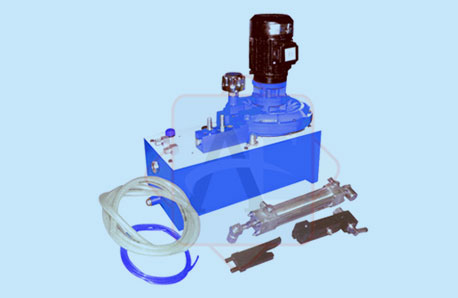

Hydro pnewmatic Power Pack is Edge Guding System. It has specially design for corretion wrongly wound various type of materials. These systems where very compact. ecomical and accurate Edge Guiding System. This sytem can be used with varous type of movable trolley in various machine to correct web materials like film, PP, Non Woven, Fabric and paper. It can be used in Lamination/Coating, Printing, Slitting, Inspection machines etc.

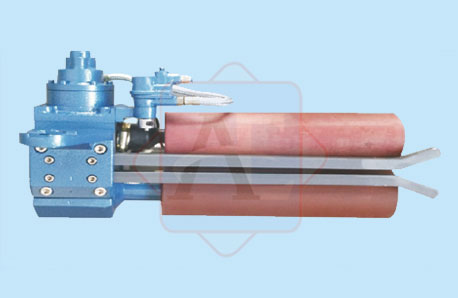

| Roller Length | 280mm/400mm |
|---|---|
| Web Edge Sensing | Feeler Lever |
| Nip Roll Operating | Pneumatic |
| Operating Pressure | 1 Bar |
| Used | Textile Industries |
| Maintanance | Low |
| Suitable Fabric | Wet and Dry Fabric |
| Performance | Suitable for Heigh speed application |
| Roller Length | 280mm/400mm |
|---|---|
| Web Edge Sensing | Feeler Lever |
| Nip Roll Operating | Pneumatic |
| Operating Pressure | 1 Bar |
| Used | Textile Industries |
| Maintanance | Low |
| Suitable Fabric | Wet and Dry Fabric |
| Performance | Suitable for Low speed application |

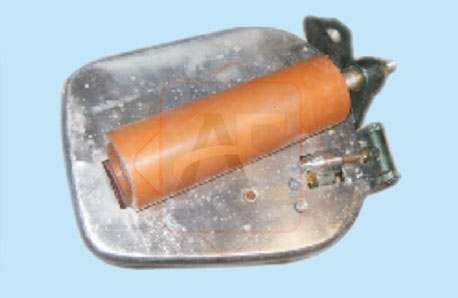

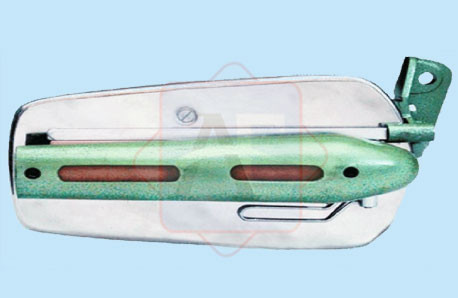

| Roller Length | 200mm |
|---|---|
| Web Edge Sensing | Feeler Lever |
| Nip Roll Operating | Mechnical |
| Operating Pressure | NA |
| Used | Textile Industries |
| Maintanance | Medium |
| Suitable Fabric | Wet and Dry Fabric |
| Performance | Suitable for Low speed application |
| Roller Length | 200mm |
|---|---|
| Web Edge Sensing | Feeler Lever |
| Nip Roll Operating | Mechnical |
| Operating Pressure | NA |
| Used | Textile Industries |
| Maintanance | Medium |
| Suitable Fabric | Wet and Dry Fabric |
| Performance | Suitable for Low speed application |
