Products Fabric Inspection and Rolling Machine


Textile Machine

Fabric Stentering and Drying Machine

We mfg and supply various type of Fabric Inspection, Tube Rolling, Batching and Folding machines for various type of woven, non-woven, denim, jute type fabric materials. We have wide range of Inspection cum Tube Rolling Machine, Plaiting and Tube rolling machine, etc., Please mail us your requirements.

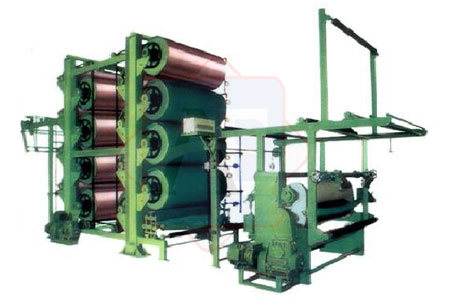

AEW 3 Bowl Pedding Mengal with 8 Cylinder Drying Range


Special Features

  • Sturdy main frames fabricated out of steel plates in box type construction and duly reinforced.
  • Rubber roller and ebonite roller as described above made out of heavy duty thick seamless steel pipes of special construction and covered with best quality synthetic neoprene rubber and ebonite and ground and finished.
  • Rollers mounted in heavy-duty roller bearings.
  • Pneumatic loading system for top and bottom roller comprising of 2 No pneumatic cylinders. Pneumatic control panel provided with up-down valves, Pressure regulator.
  • Pressure Gauge of each roller bottom roller driven by 10 HP DC Motor gearbox assembly.
  • SS Trough Fabricated out of stainless steel.
  • SS trough has one SS guide roll mounted inside running special 'TEFLON" Bearings.
  • Direct and indirect steam heating arrangement is provided on request.
  • SS Through has tray below roller nip to return squeezed liquor to the troughs.
  • Special design troughs can be provided on request.

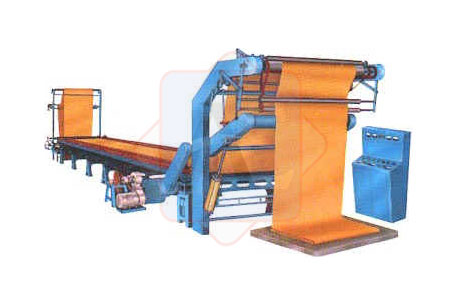

Open Stenter Machine


Open Stenter is used to give stitching and batching to the cloth, once it reaches the finishing stage. This textile machine is used with the purpose of giving a fine finishing to the cloth.


Special Features

  • Close circuit air circulation chamber
  • Wide internal space of chamber for easy cleaning
  • Zig-Zag arrangement of motors
  • Heavy duty heat exchanger are used for more drying capacity
  • +/-2% deviation from left to right temperature for uniform heating in nozzle
  • Highly polished cast iron rails of self lubricating material for minimum wear at high speed
  • Individual exhaust duct for quick removal of gases from each chamber
  • Minimum heat loss to the atmosphere
  • Efficient exhaust system for humidity control
  • Easy conversion from oil to gas or gas to oil heating
  • Rapid heat setting and drying fabric
  • Blower impeller for high velocity air circulation resulting in increase of production
  • Easy online filter cleaning
  • Lubricated or non-lubricated (graphite fiber) chain for easy convey of fabric with minimum wear (optional)
