Products Fabric Sample Cutting Machine


Textile Machine

Fabric Slitting Rewinding Machine

This machine was specially designed to cut Interlining Woven and Non-woven Fabric Rolls. This machine comes with Manual Rack system or PLC base Servo drive Automatic Cutting arrangement. It can slit Min 20mm Roll Widths and above. We have designed special mechanical rack system to cut fix size roll with 2mm tolerance or PLC driven fully automatic with lmm tolerance.

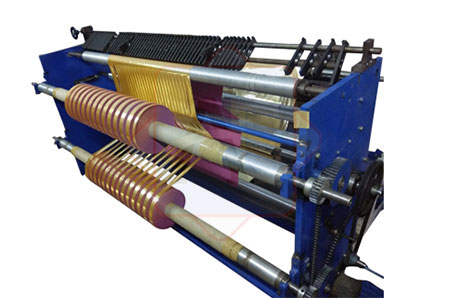

Shaft Type Non Woven Slitting Machine


Fabric Slitting Rewinding Machine


Technical Specification

Web Width 500mm to 2000mm
Max. Unwind Dia. 1000mm
Max. Rewind Dia. 400mm/600mm/1000mm
Max. Speed 150m/min.
Min. Slit 25mm
Cutters Rotary or Razor
Automation Tension Control System
Materials Nonwovne, Woven, Glass Fabric

Special Features

  • Most versatile, model providing combination of duplex center cum surface rewind system
  • Constently flawless slit rolls by providing center driver drum to maintain .Fixed minimum distance between slitting and rewind point
  • Suitable for off caliper / slippery / stretchy material
  • Various type of web material from Nonwovne, Woven, glass fabric can be cut very economical way in our machine
  • Its made from Heavy duty CI/MS Wall or Heavy Channel/Angle Structure
  • Slitting methods as per customer requirement like: Scissor cut/crush cut (Circular knives)/ Razor blade slitting system
  • Material feeding/Input/ will be in Roll Form only
  • Minimimum slitting widh is 25mm and above
  • It comes with edge guide facality for perfect edge roll
  • It can come with auto tension control system for smooth and tight rewinding of finished roll.
  • Machine comes up with Speed Indicators Mt. / Min, Length Counter / Batch Counter.
  • Slitting Speed up to 150 Meter per miniut
  • We can designed customize machine also base on customer need.

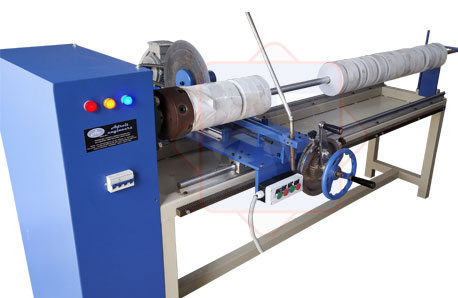

Interlining Roll Cutting Machine


Technical Specification

Max. Roll Width: Up to 2500mm
Max. Rewind Dia. 300mm
Min Cutting Size 20mm
Cutting Type Manual/Automatic
Material Nonwoven, Woven, Bukram and Interlining Fabric

Special Features

  • Most Economical way to slit the various material web roll.
  • Suitable for Non-Adhesive material.
  • Widely used for Interlining Fabric/Nonwoven and Maskin/PVC Adhesive Tapes.
  • Its made from Heavy duty MS Wall and Heavy Channel/Angle Structure.
  • Slitting methods rotory blade slitting system.
  • Material feeding/Input/ will be in Roll Form only.
  • We can provide you seperate Unwind station to make Jumbo roll to small roll for slicing machine.
  • We can make semiautomatic to automatic slicer base on customer need.
  • Minimimum slitting widh is 20mm and above.
  • Slcing Speed up to 15 Cuts per miniut.
  • We can designed customize machine also base on customer need.

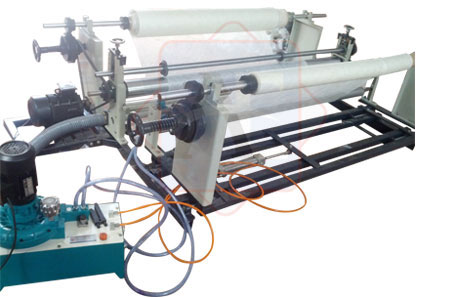

Jumbo Roll to Small Roll Rewinding Mahcine


Technical Specification

Web Width 500mm to 1500mm
Max. Unwinding Dia: 1000mm
Max. Rewind Dia. 400mm
Max Speed 150m/min.
Trimming 100mm
Materials Nonwoven, Woven, Bukram and Interlining Fabric

Special Features

  • Varity of rewind machine we make in Most Economical way base on customer's need.
  • Its made from Heavy duty MS Wall and Heavy Channel/Angle Structure.
  • Mechanical Web Gripper & Cross Cutting Slot on Inspection Table.
  • Individual Drive for both rewind station Synchronize with Nip and slitting Drive.
  • Used for varity of material like Nonwoven, Woven, Bukram and Interlining Fabric etc.,
  • We can designed customize machine also base on customer need.
