Textile Machine

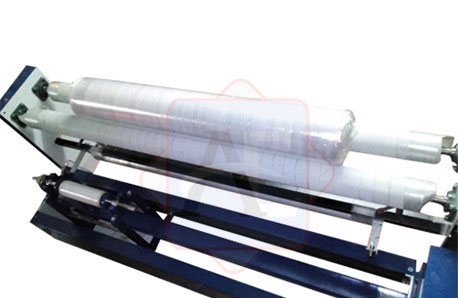

Fabric Roll Wrapping Machine

This Machine is specially designed to Stretch Wrap Fabric Rolls up to 20" Diameter and up to 100" Width fabric rolls. This machine gives tight stretch film packing to protect fabric roll from wear and tear during transit process. Pre-Stretch Machine comes with Motorized stretching mechanism and Post Stretching machine comes with Mechanical Break Stretching mechanism.

Fabric Roll Stretch Wrapping Machine

Technical Specification

Power Supply	1.5Kw, 220/415 V, 50 Hz
Roll Length	1500mm to 3000mm
Roll Diameter	200mm to 600mm
Stretching	250%
Stretching Type	Pre-Stretch
Materials	LDPE Stretch Film

Special Features

We have designed verios model from Semi-Automatic to Fully Automatic Stretch Wrapping Machine.
Normally our machine were designed with Heavy duty turn table for verious industrial applications.
Sturdy Designed made from Heavy duty CI/MS Wall or Channel/Angle Structure
We give option for Compact stretch unit with change gears to vary stretch percentage.
All our Machine Suitable for a wide range of stretch film material from manual to machine grade.
We design machine base customer needs only.
Our machine operation is very Simple and Easy for machine operators.
We can designed customize machine also base on customer need.
